BREAKER-IQ®
![](https://utilityrelay.com/Photos/Powertest/Powertest1.png)

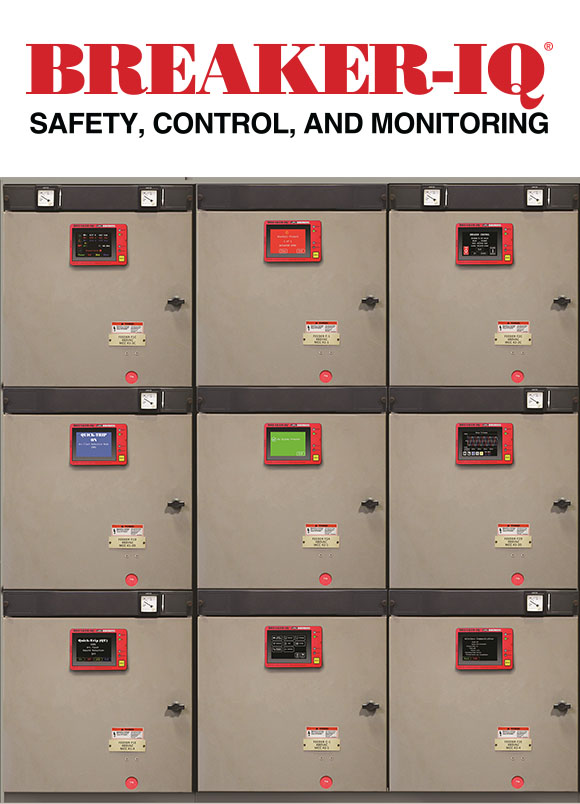

BREAKER-IQ® is a full-color door-mounted touchscreen that enables users to safely view breaker status, engage and disengage our
QUICK-TRIP® arc flash reduction system (commonly referred to as ERMS), trip and close breakers, and analyze data – all without having to open the cubicle door. BREAKER-IQ® replaces our legacy QT-DISPLAY® and
QT-DISPLAY-IM® products.
BREAKER-IQ® is essentially plug and play and comes ready to work out of the box! Simply connect to AC-PRO® and to an auxiliary power source. Detailed installation instructions can be found here.
When you think BREAKER-IQ®, think SAFETY, CONTROL, and MONITORING. By minimizing the need to physically access the circuit breaker, this innovative product contributes to a safer and more efficient operating environment.
- BREAKER-IQ® Features:
- Touchscreen for QUICK-TRIP® control or use with external QT switch (existing URC product)
- Delayed Trip and Close via included terminals for easy wiring (on door) into Close circuit
- User interface matches AC-PRO-II®
- Wireless communications
- USB ports
- 3.5” color touch screen
- Display is always ON
- Indication LEDs
- Cable Connection to AC-PRO-II®
- Backwards compatible with legacy AC-PRO®**
**Functionality with legacy AC-PRO® limited to LEDs, QUICK-TRIP® (with additional physical switch) and displaying status up to 16 characters.
BREAKER-IQ® SCREENS
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_QTon.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_BreakerControl.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_AlarmsActuatorOpen.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_ScheduledServiceDue.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_NoAlarms.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_TripWaveformWhite.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_HomeScreen.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_SluggishBreaker.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_WirelessConnected.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_Settings.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_Waveform.png)
![](https://utilityrelay.com/Photos/BreakerIQ/BIQ_QToff.png)
